| Name: | Air Column Bag Making machine （part A ） Max Film width 800mm |
| Speed (Meter/min): | 18-21m(adjustable) |
| Max Loading Size(mm): | 800mm |
| Max loading diameter: | ￠600（length 2000m） |
| Roll holder diameter(mm): | ￠74mm |
| Total Powder(kw): | 11kw |
| Net Weight(kg): | 1500 |
| Electronic supply: | 380V 50Hz |
| Raw material: | PE co-extruded film etc |
| Inquiry |
Product Description

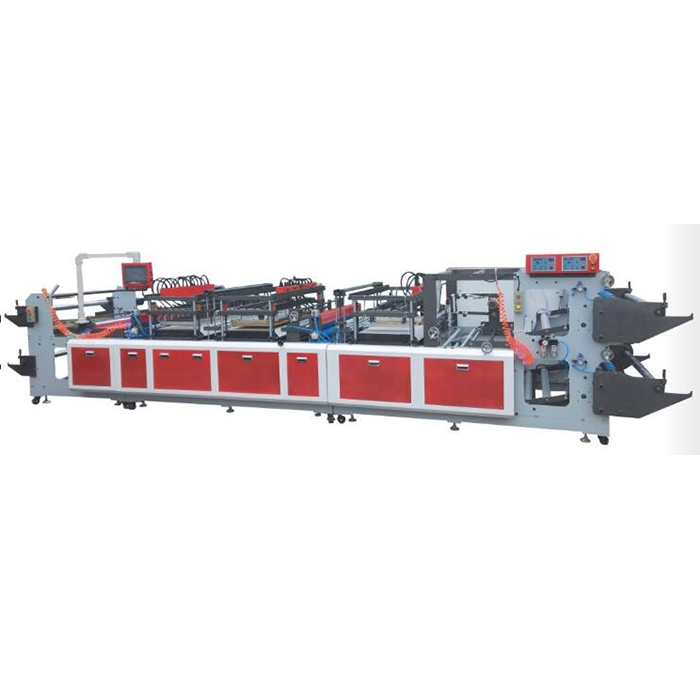

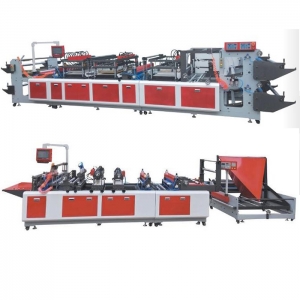

The Air Column FIlm Making Machine is a special designed machine for small size of air column film from 200mm-800mm, which is widely used in express and logistics industries. The max width of air column film is 800mm.
Machine Features：
1. Automatic Machine controlled by PLC and inverter. Easy
operation control panel.
2. The whole machine is controlled by widely frequency range of
inverters, which can be step-less speed changing.
3. The air shaft cylinder are equipped in the feeding and winding
part, which makes the machine more convenient-operation.
4. Automatic counting and alarm.
5. Device for cutting wastage.
