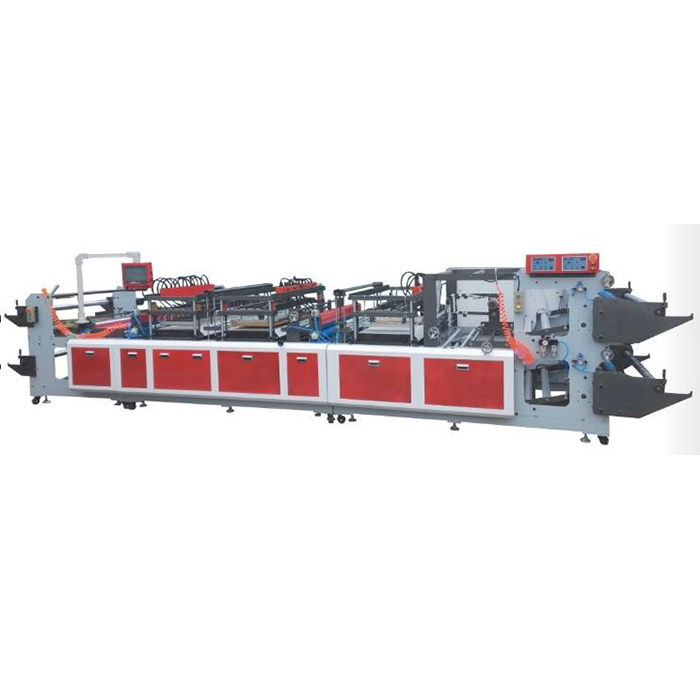

Name:Air Column Bag Making Machine (Part A) Max Film Width 1150mm
Part A air column making speed (meter/min):18-24m (Adjustable)
Max loading width(mm):1150
Max loading Diameter(mm):¢500(length 2000m)
Roll holder Diameter(mm):¢74mm
Total power(KW):14.5kw
Noise(DB):≤55DB
Voltage:380V 50Hz
Inquiry
Product Description

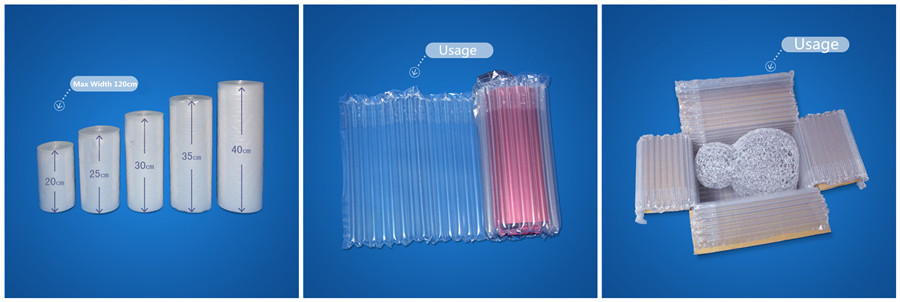

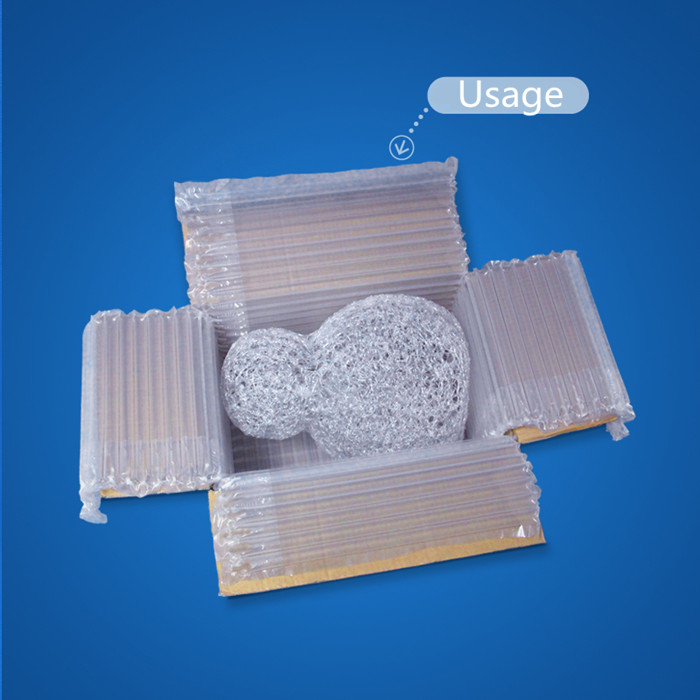

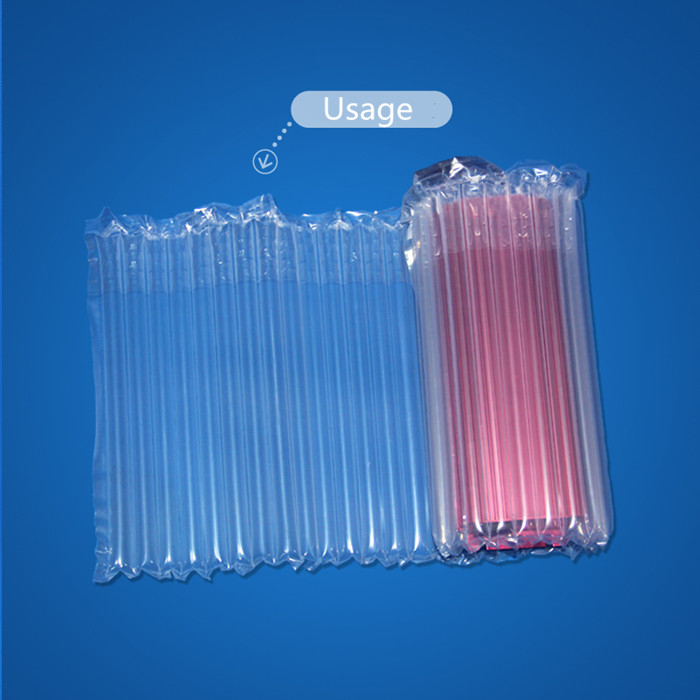

APPLICATIONS


FEATURES



This machine is the Part A of Air Column Bag Production Line.This machine is used to make the air column film from width 200mm to 1150mm, which is widely used in express and logistics industries. Also can work together with machine part B to produce air column bag.

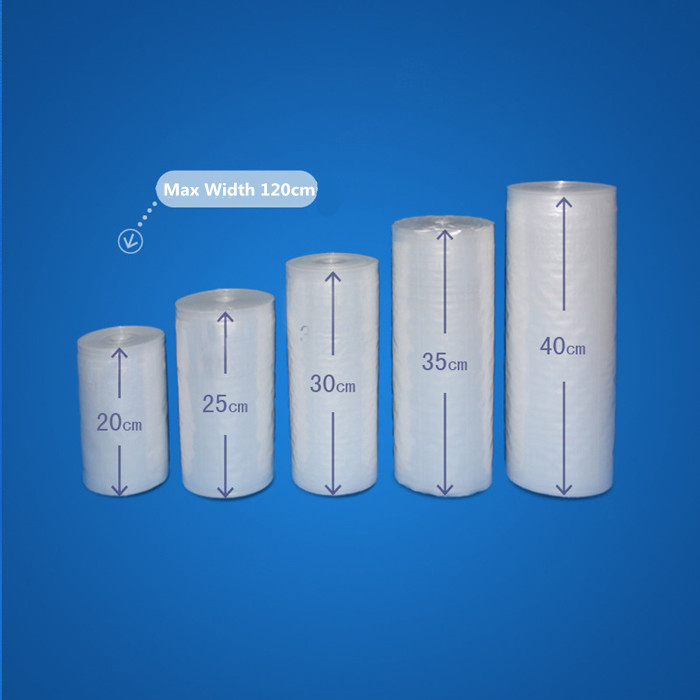

Max roll film width can be 1.15m.



 Machine Features

1. Automatic Machine controlled by PLC and inverter. Easy operation control panel.

2. The whole machine is controlled by widely frequency range of inverters, which can be step-less speed changing.

3. The air shaft cylinder are equipped in the feeding and winding part, which makes the machine more convenient-operation.

4. Automatic counting and alarm.

5. Device for cutting wastage.


Technical Data

Part A

Part A air column making speed (meter/min)

18-24m (Adjustable)

Max loading widthmm

1150mm

Max loading Diametermm

500=length 2000m

Roll holder Diametermm

74mm

Total powerKW

18.5kw(Part A

Net weightKG

4700kgPart A)

Dimension

                         Part A7000×1850×1500mm

NoiseDB

≤55DB

Yield%

≥98%

PressureN/mm2

15

Power supply

380V  50Hz

Raw material

     PE co-extruded film, etc.
